Disassembling a Minolta MD Zoom 35-135mm f/3.5-4.5

For an idea of lens arrangements:
http://artaphot.ch/minolta-sr/objektive/189-minolta-35-105mm-f35-45

Tools

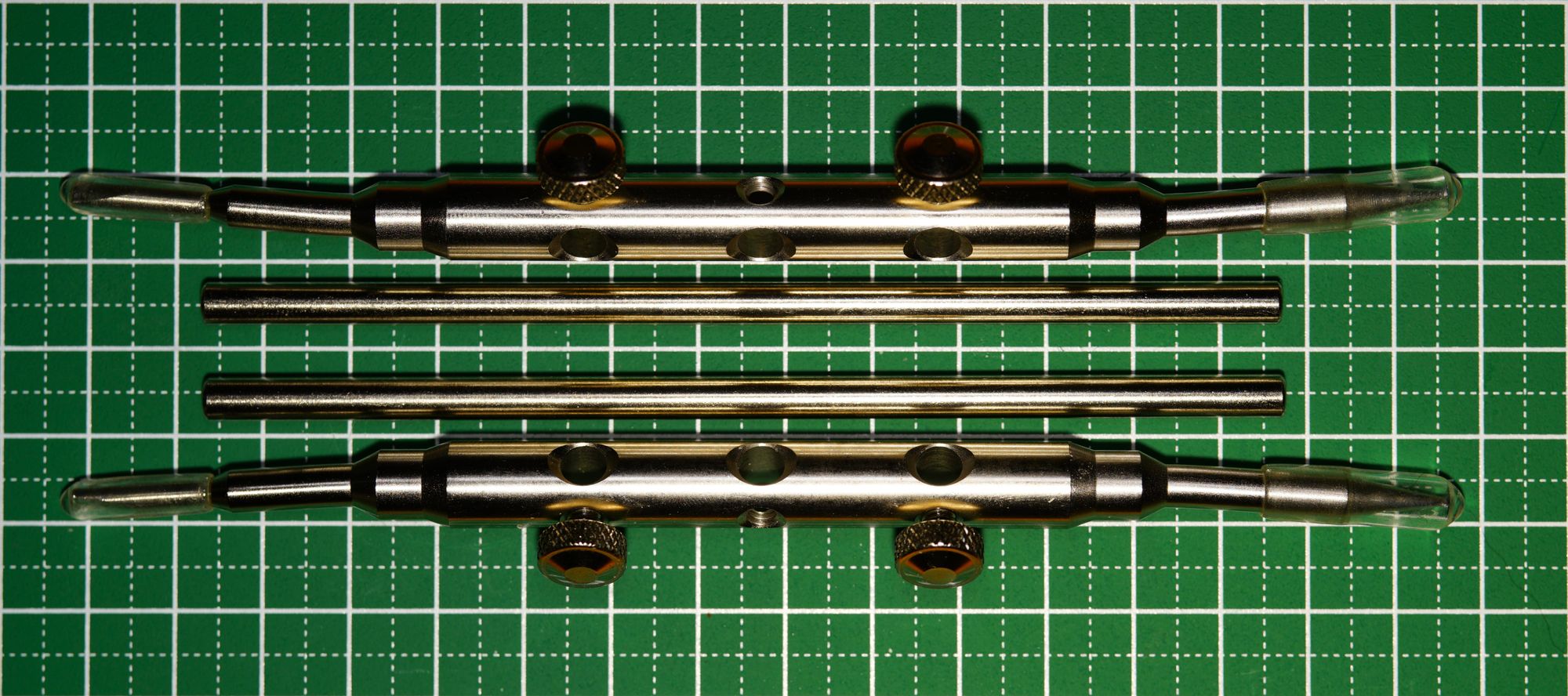

Lens compass, Specifically one with a strong, flat end. The pointed ends won't work on some of the lens groups.

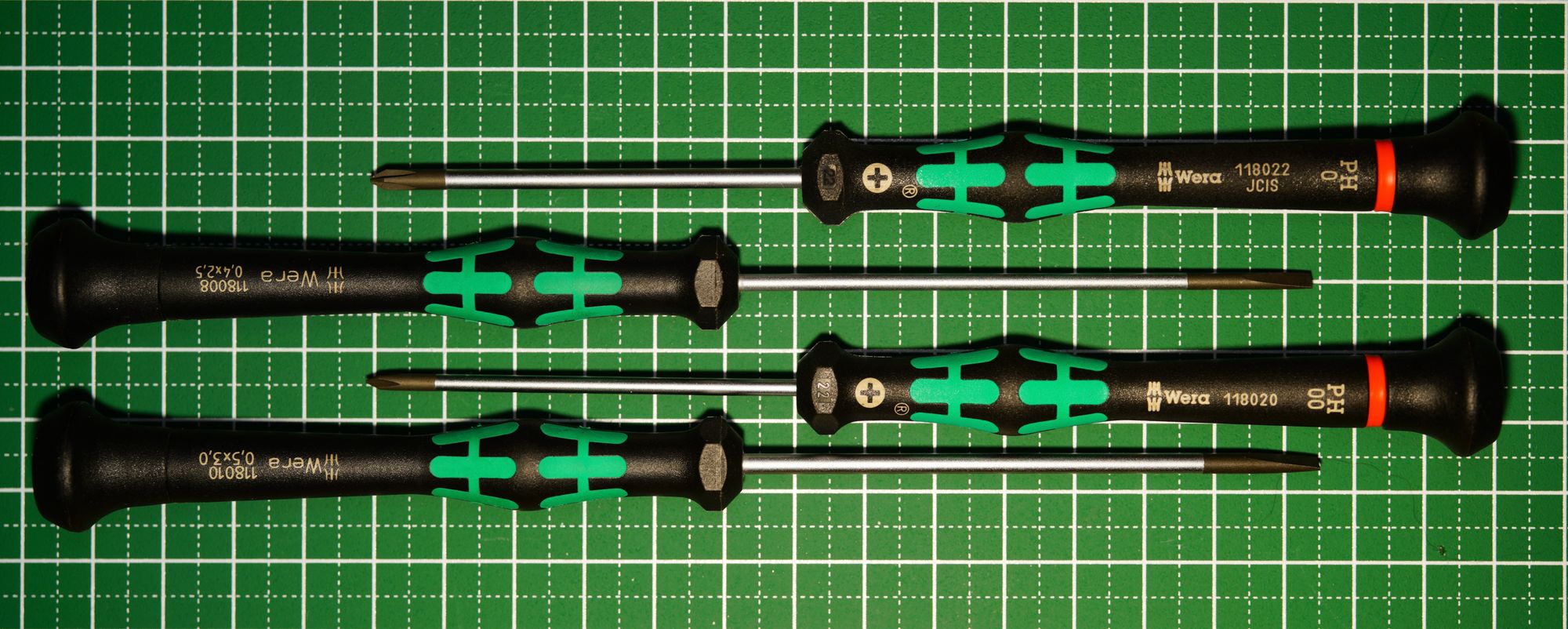

A nice set of precission screwdrivers will also go a long way.

Specifically a P0 is required

Rear half

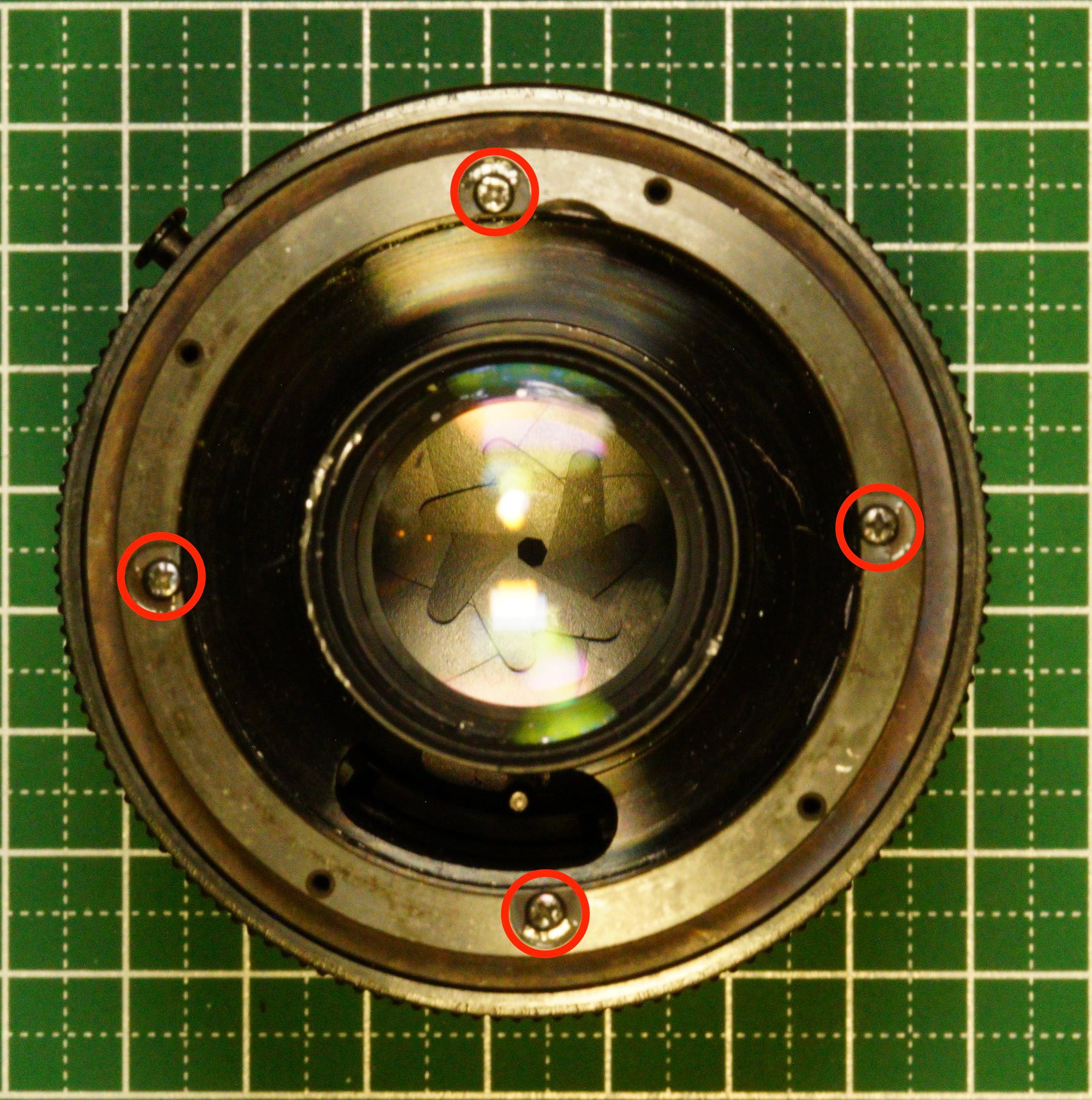

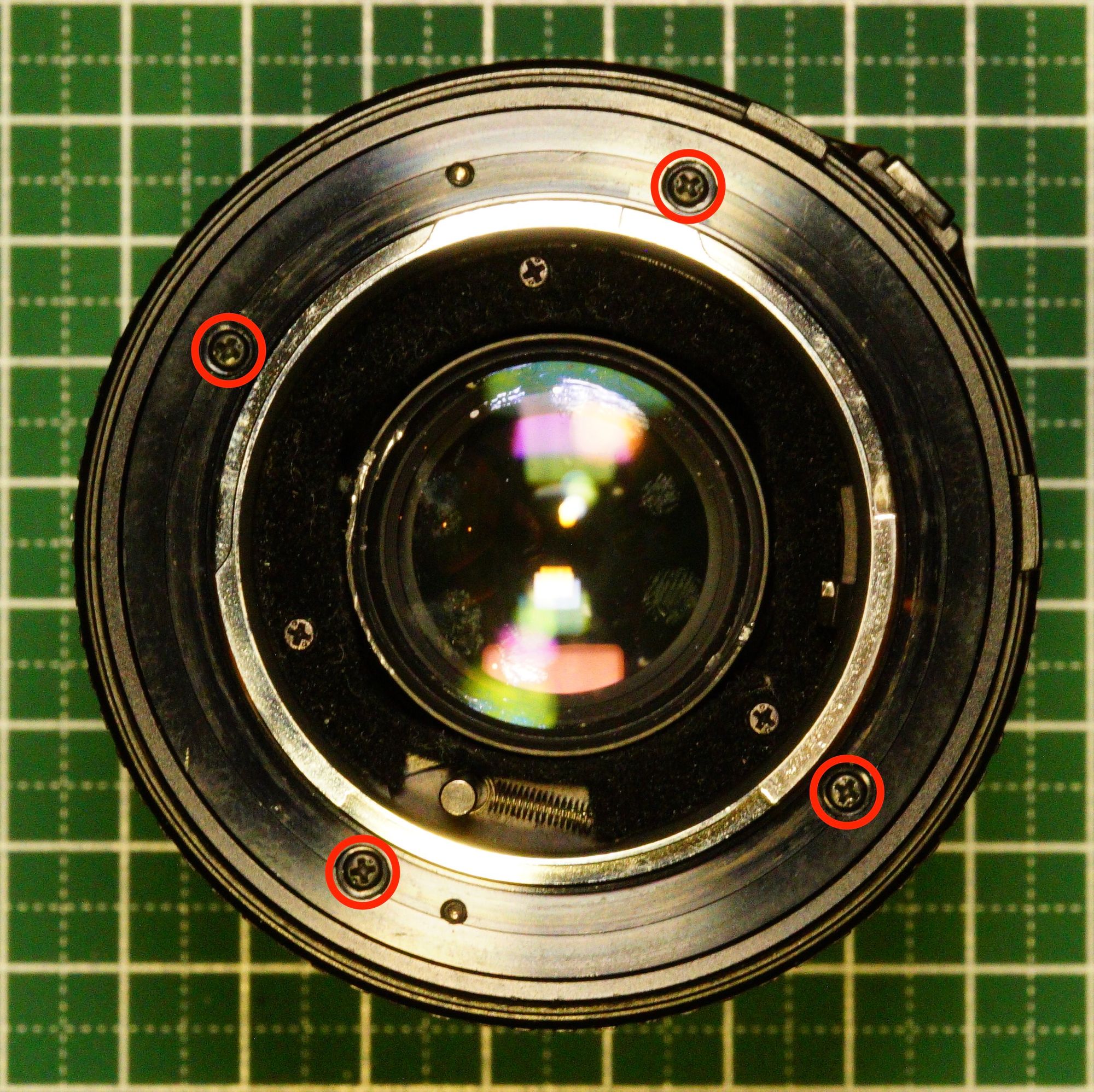

Remove 4 screws, then pull the aperture ring and attached casing off

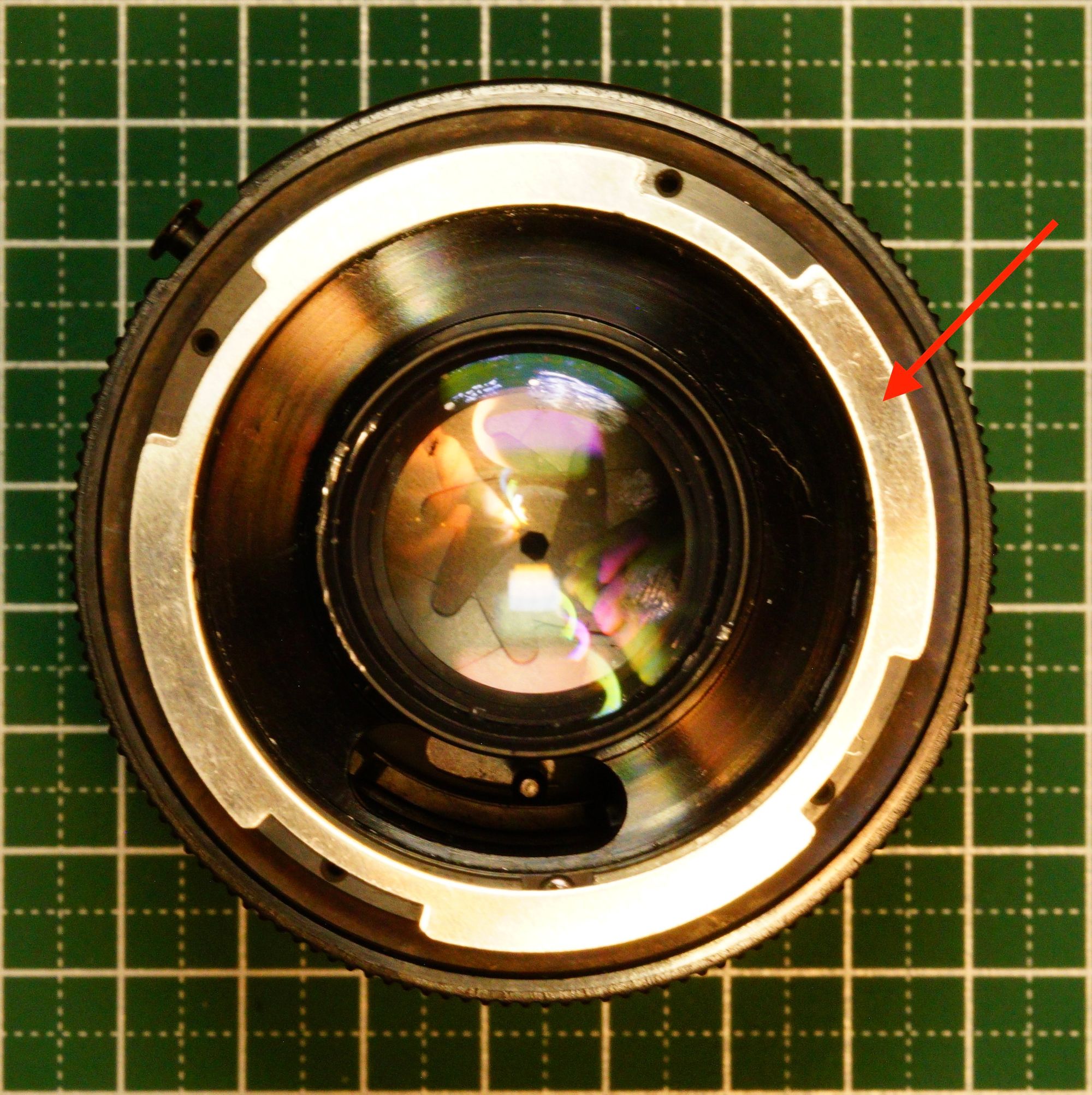

Remove the silver and copper spacers

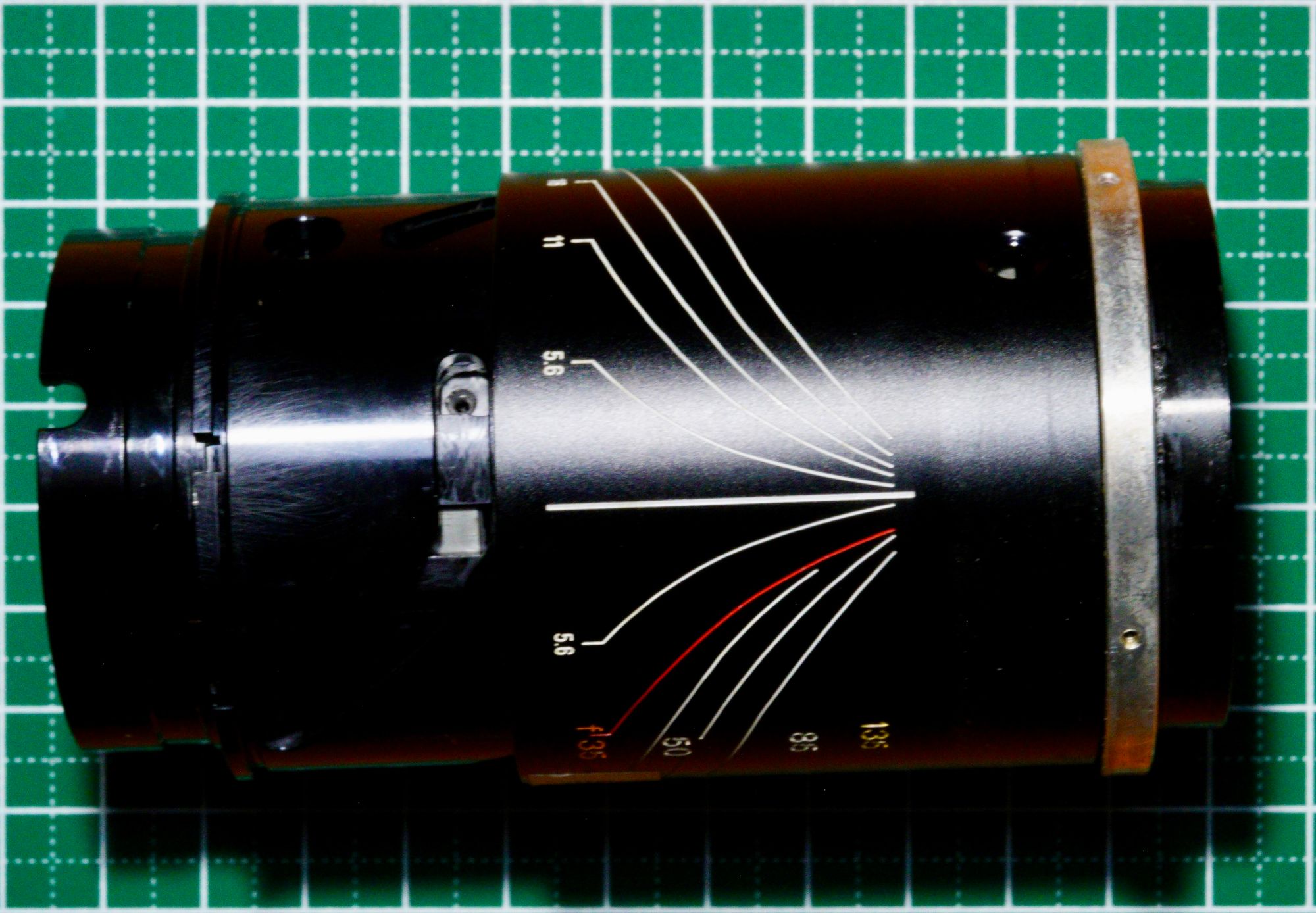

Four more screws, then the macro ring can be pulled off

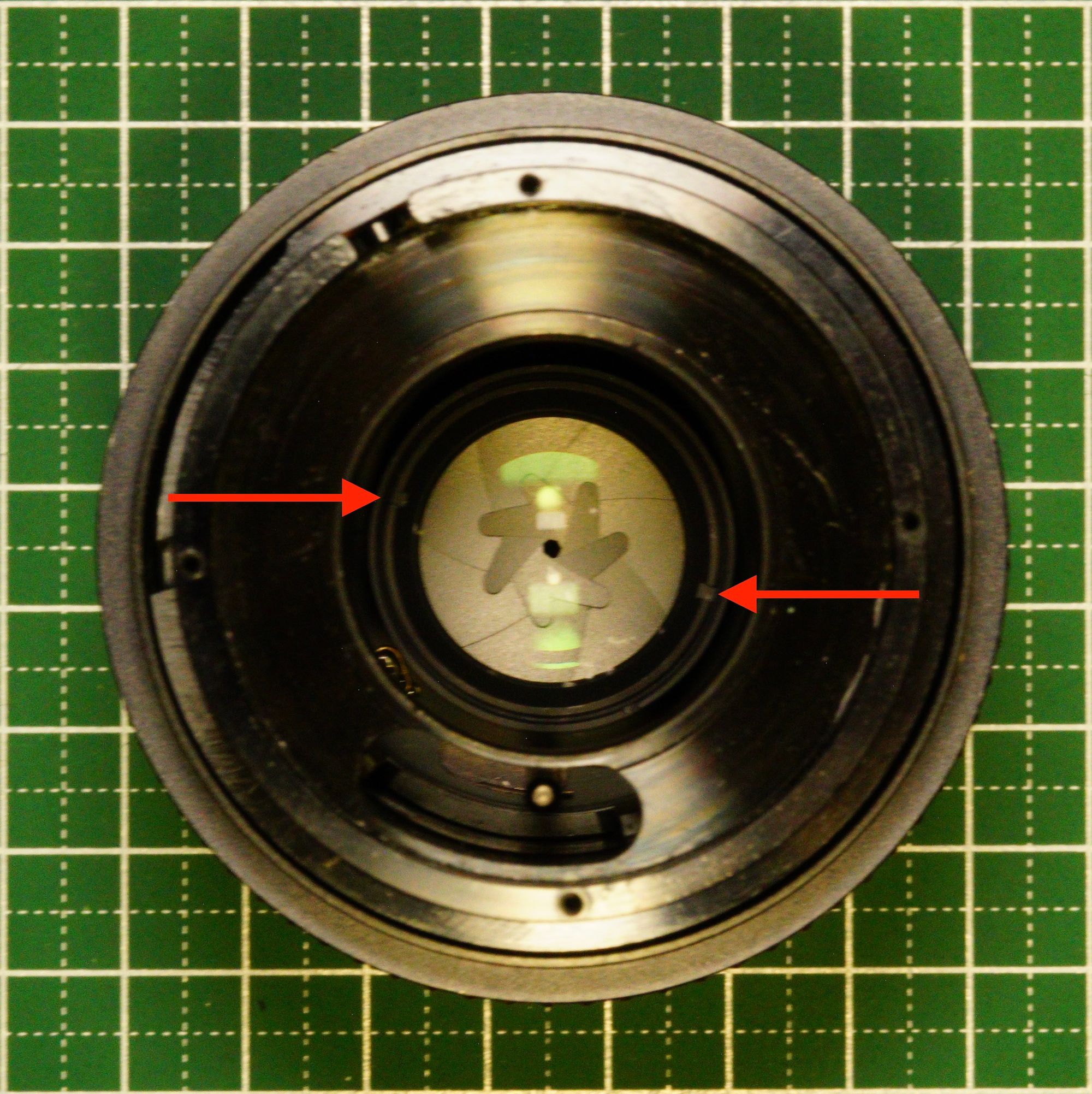

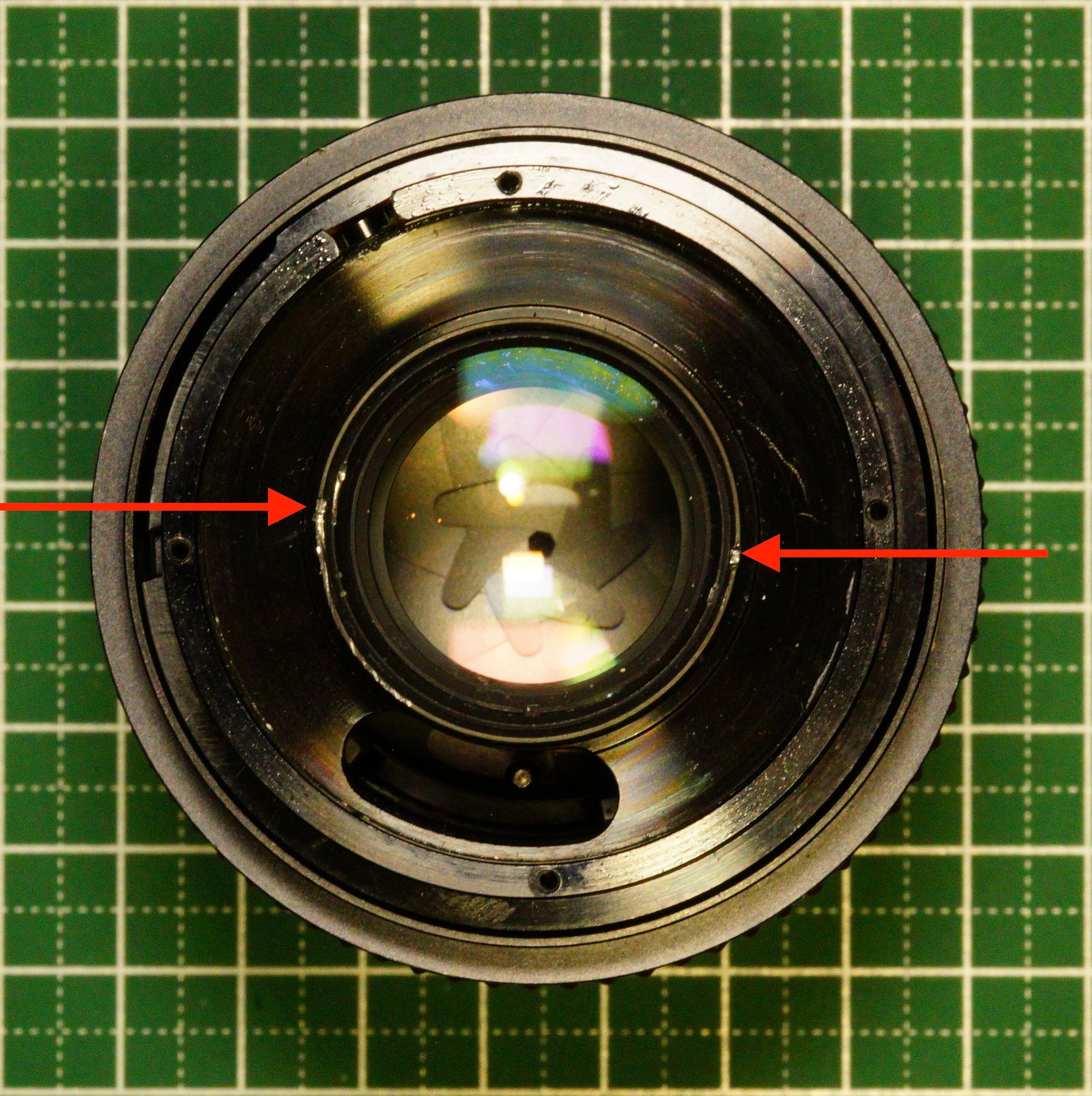

Now the rear lens group can be removed. Using the lens compass very carefully unscrew the rear group.

Now reaching down deeper into the body remove the second to rear lens group, again with a lens compass.

The two rear lens groups have now been removed.

Bonus photos

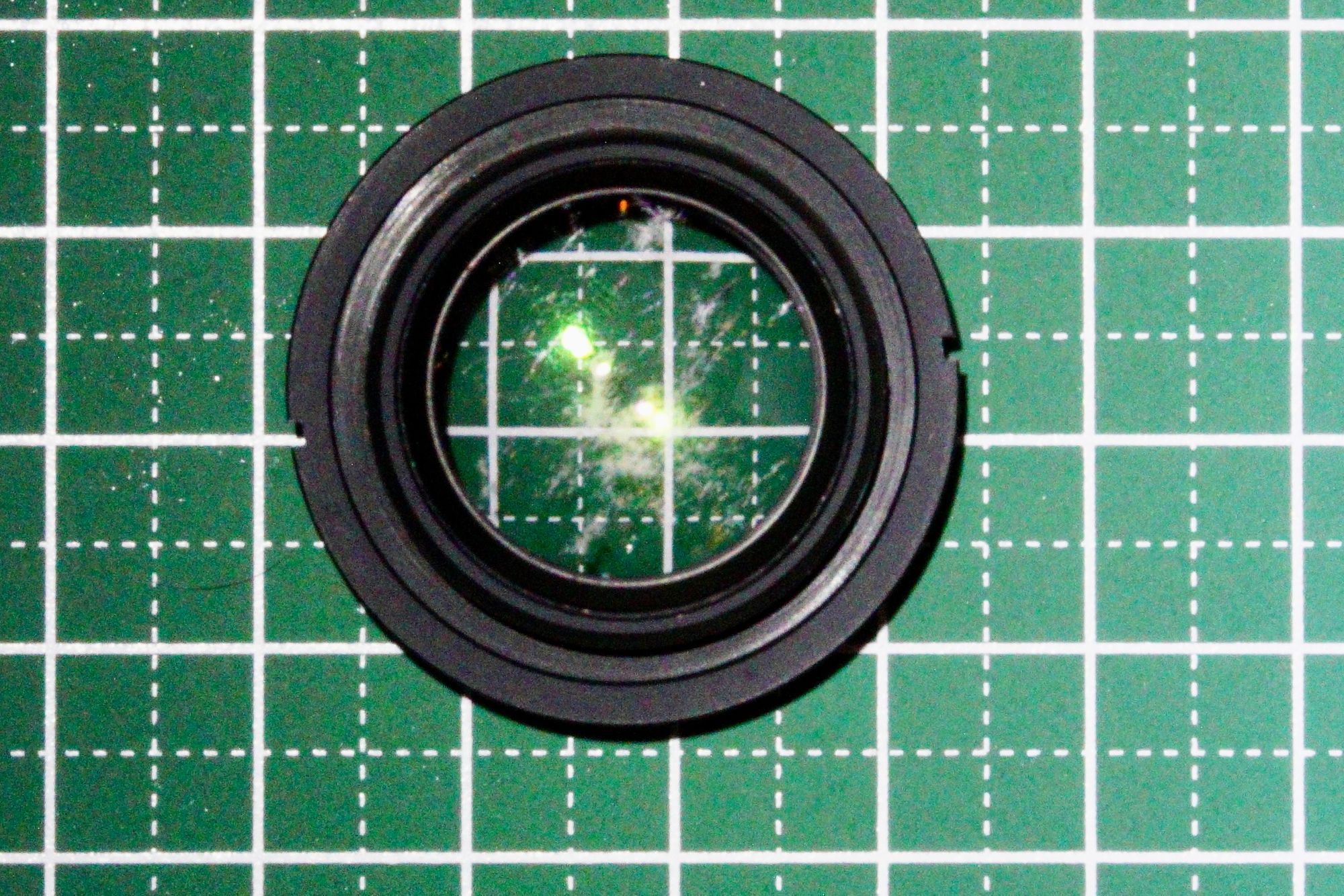

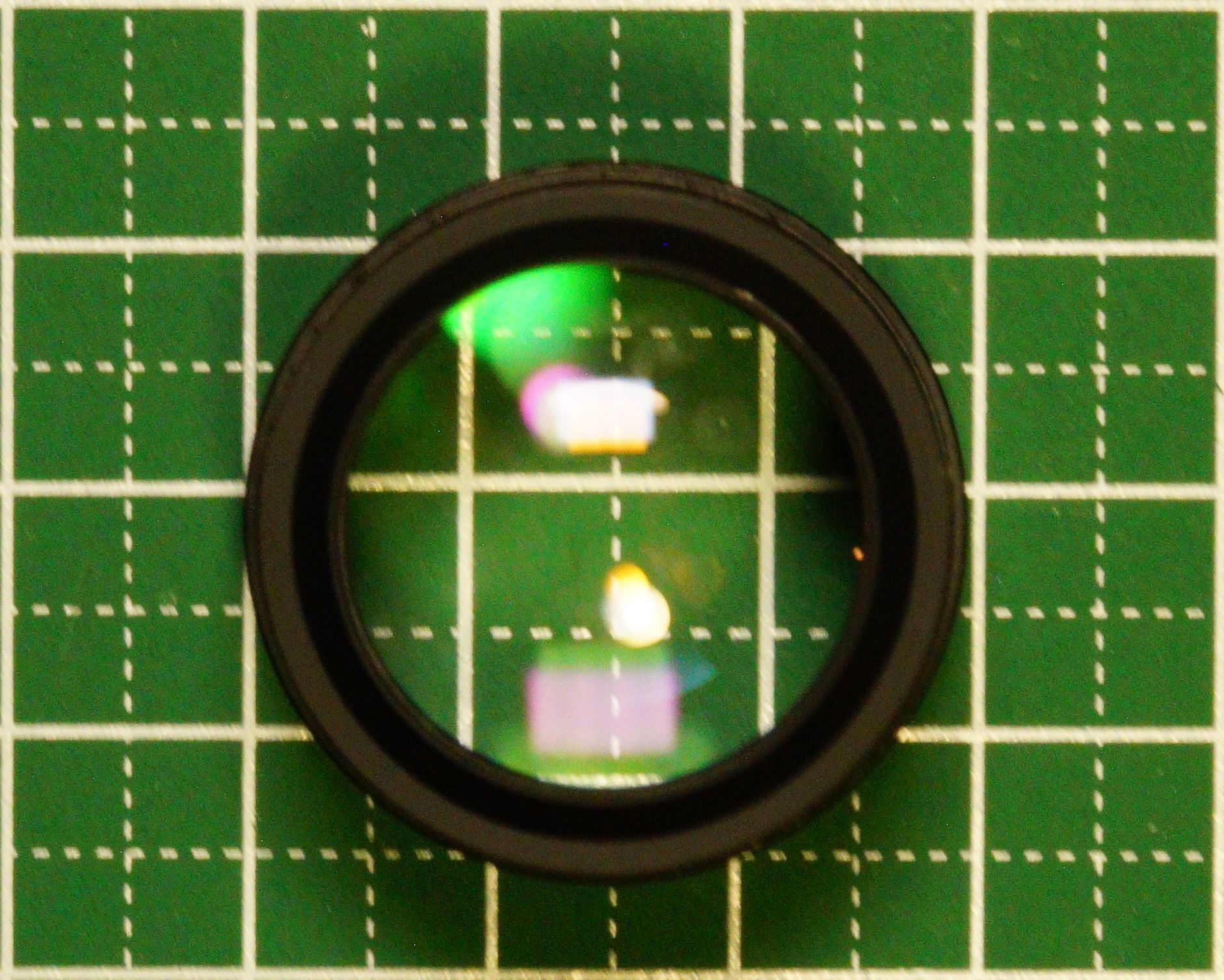

Rear group

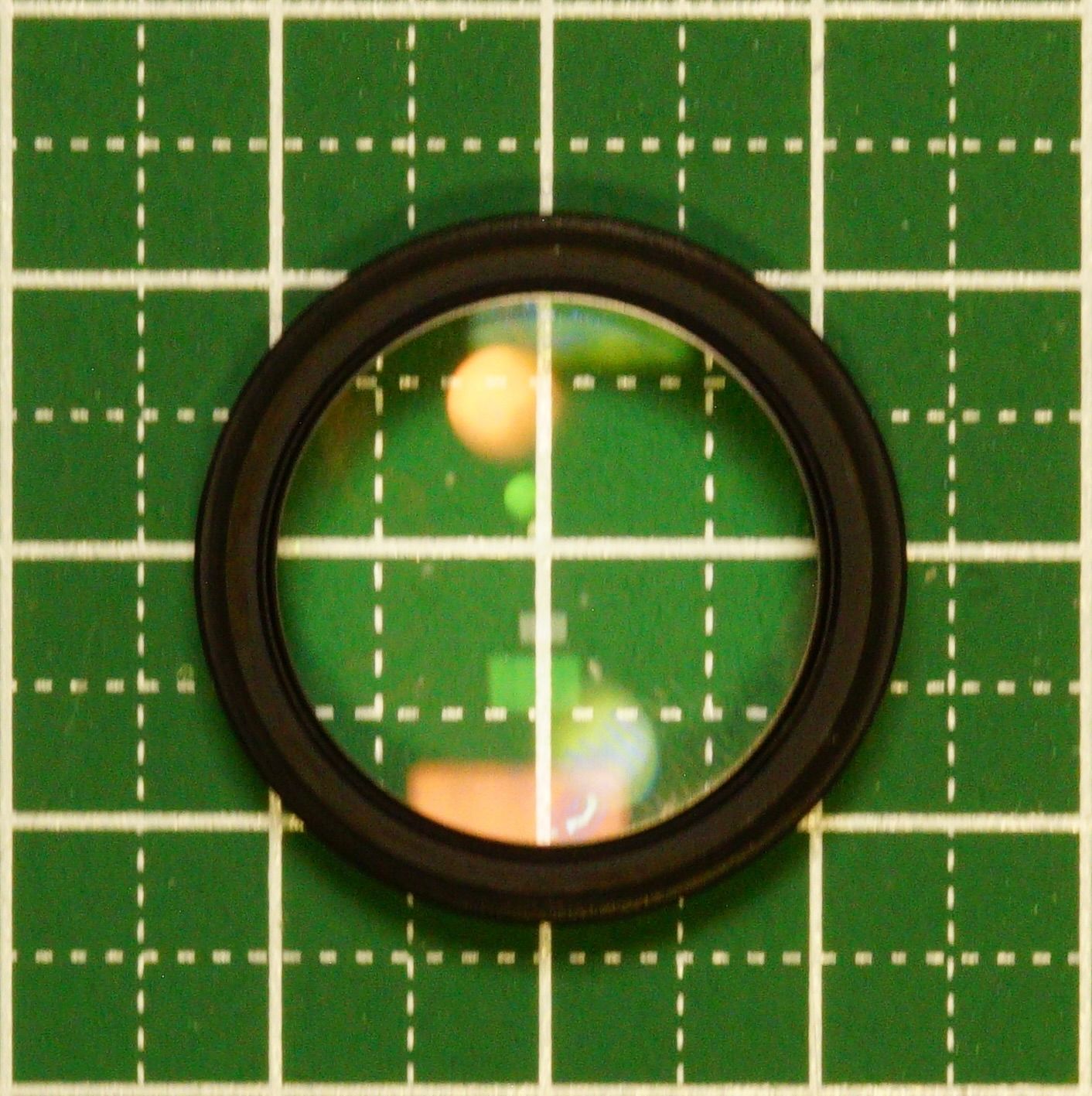

Second to rear group

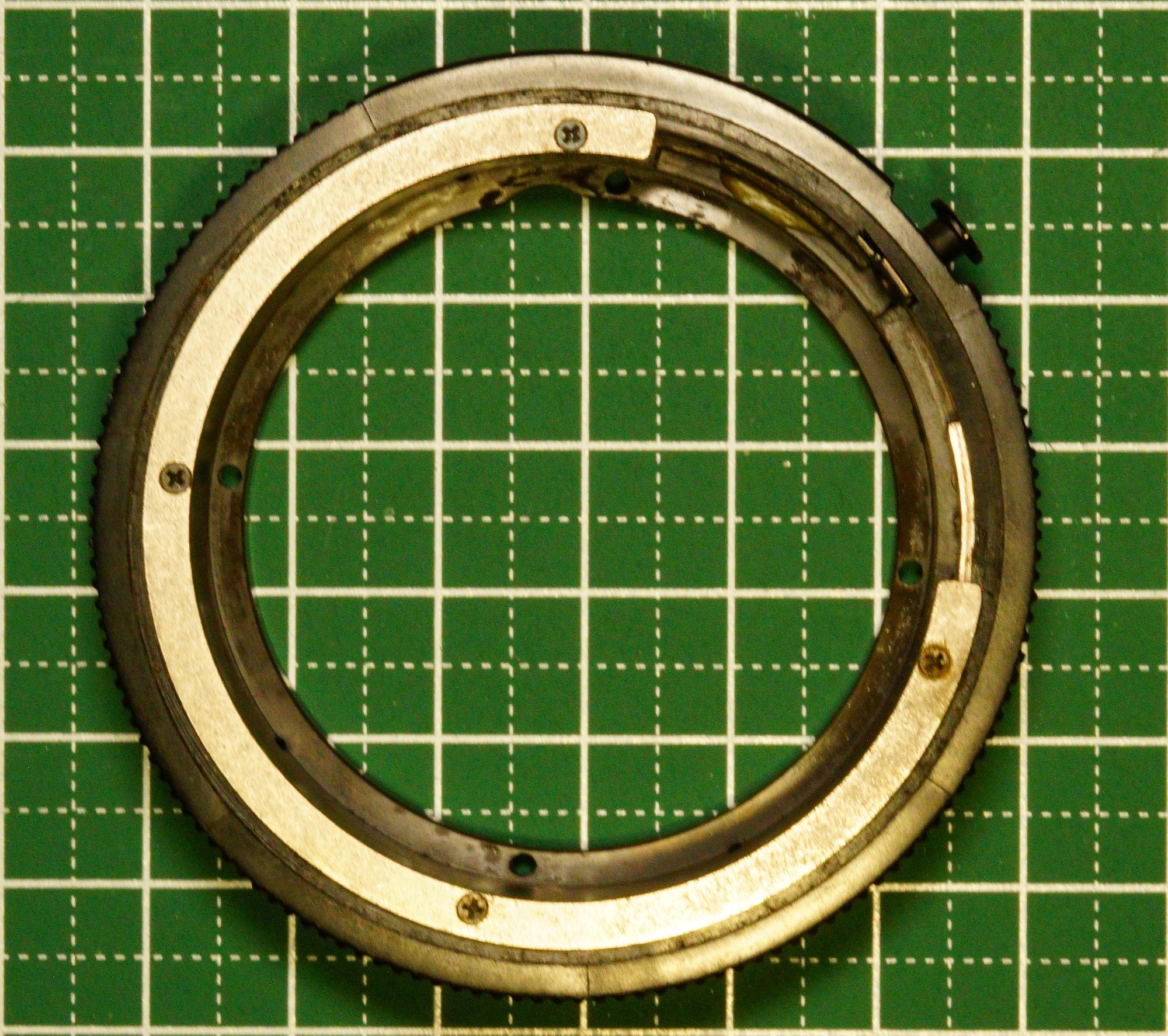

Macro Ring

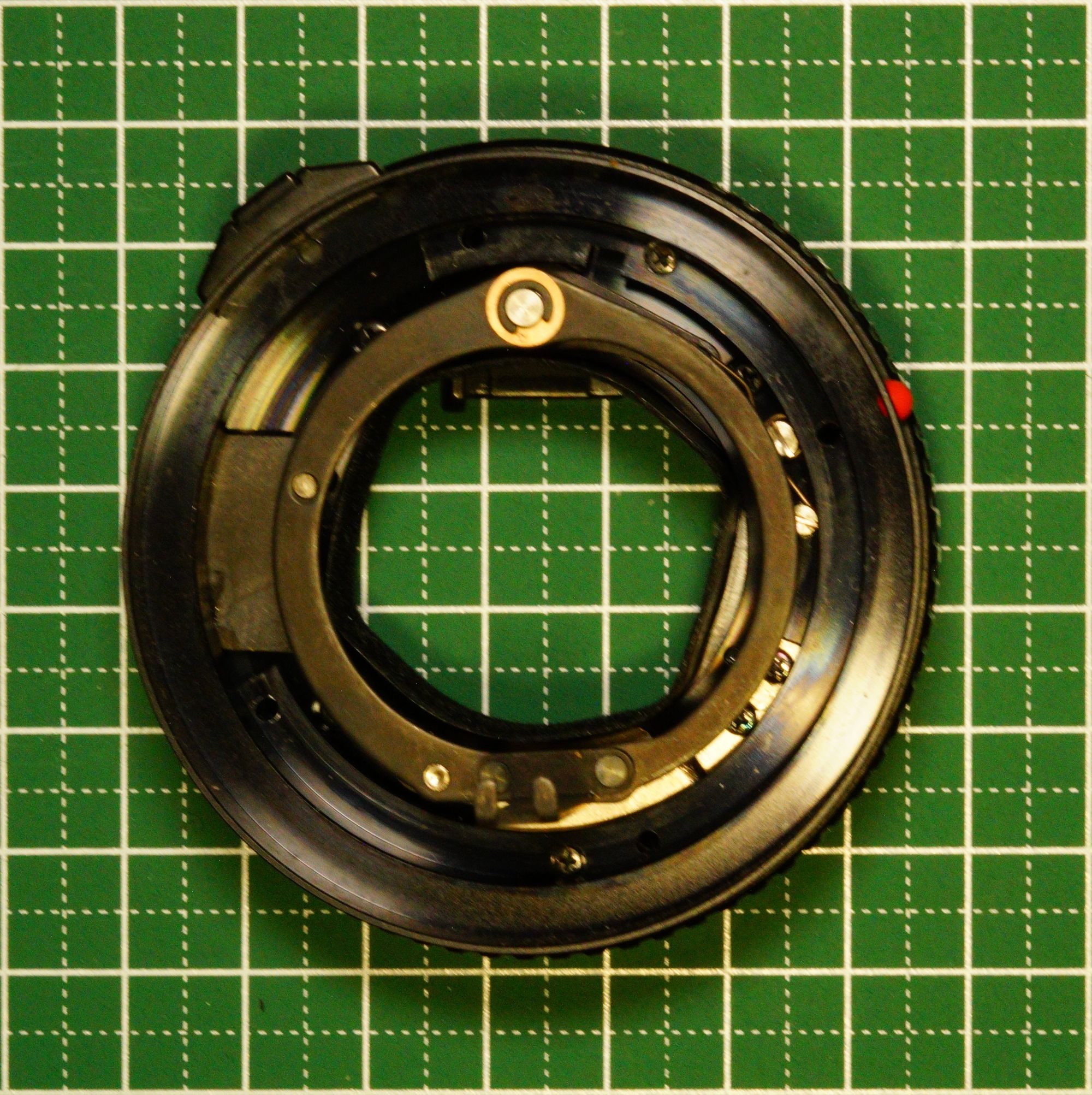

Aperture Ring

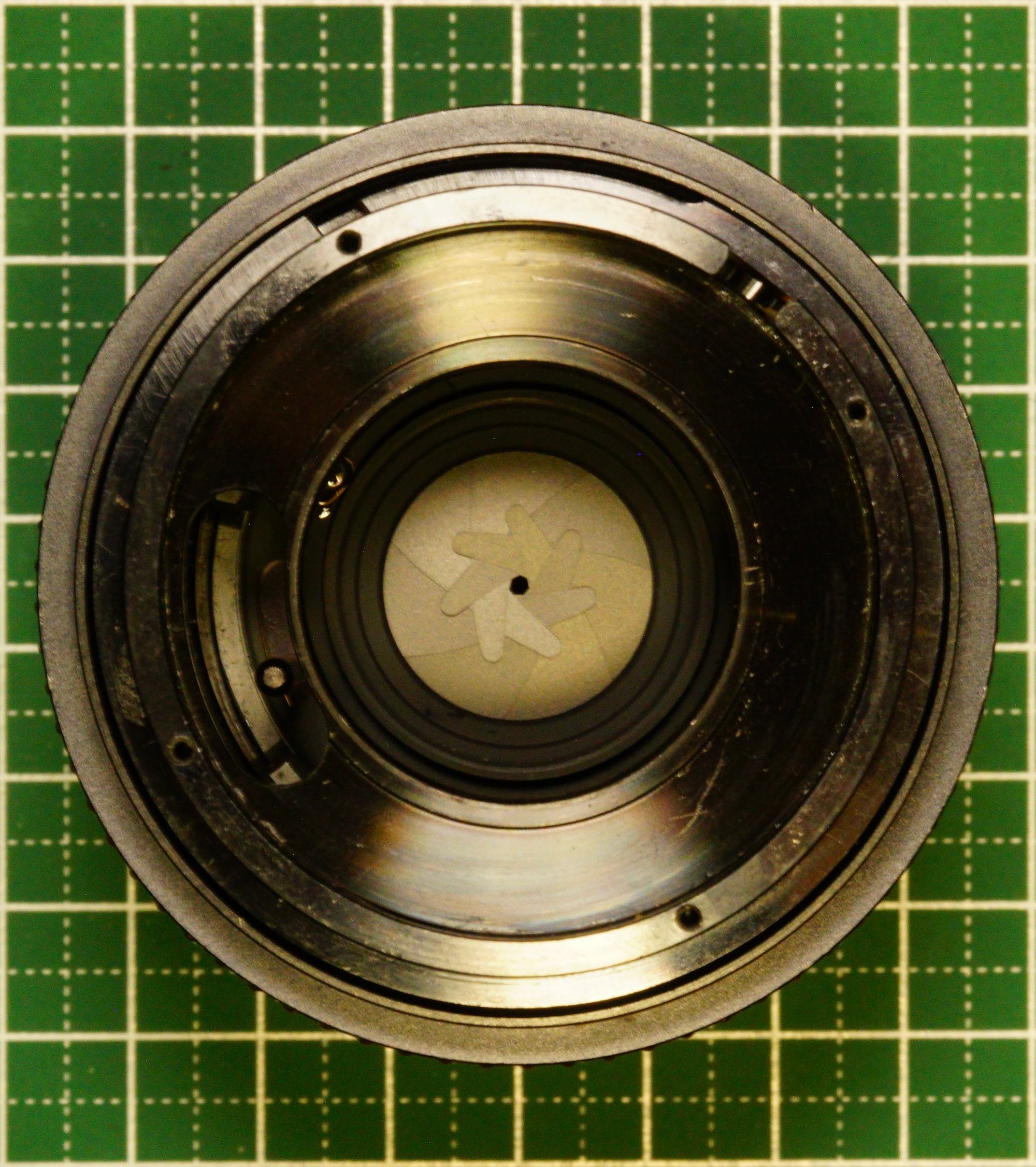

Body from the rear with no lens groups remaning behind the aperture

Front half

The front two need to be approached from the other direction.

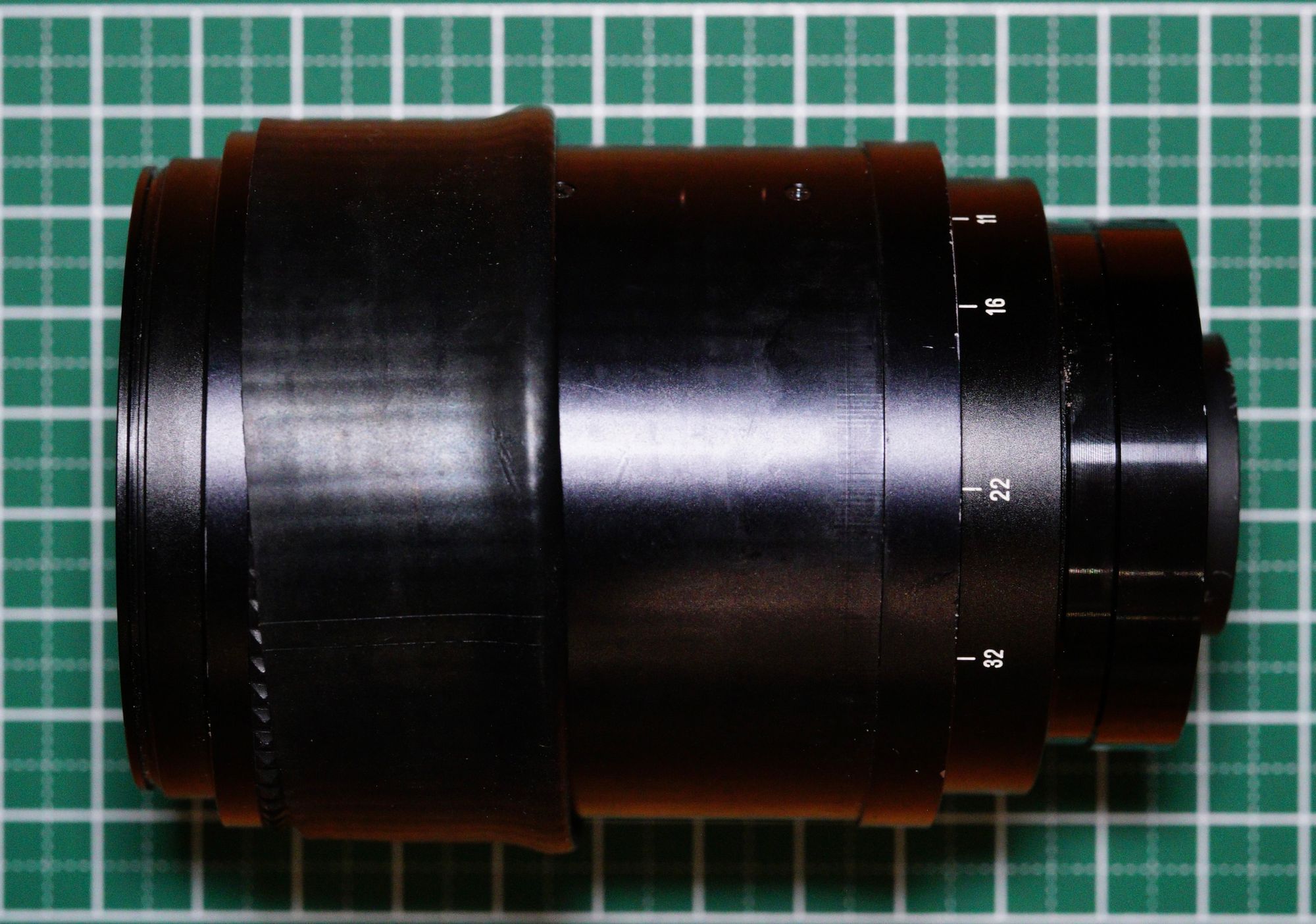

To start with you'll need to peel back the rubber on the focusing ring

Once you've got it off you should see a bunch of screws and copper plates.

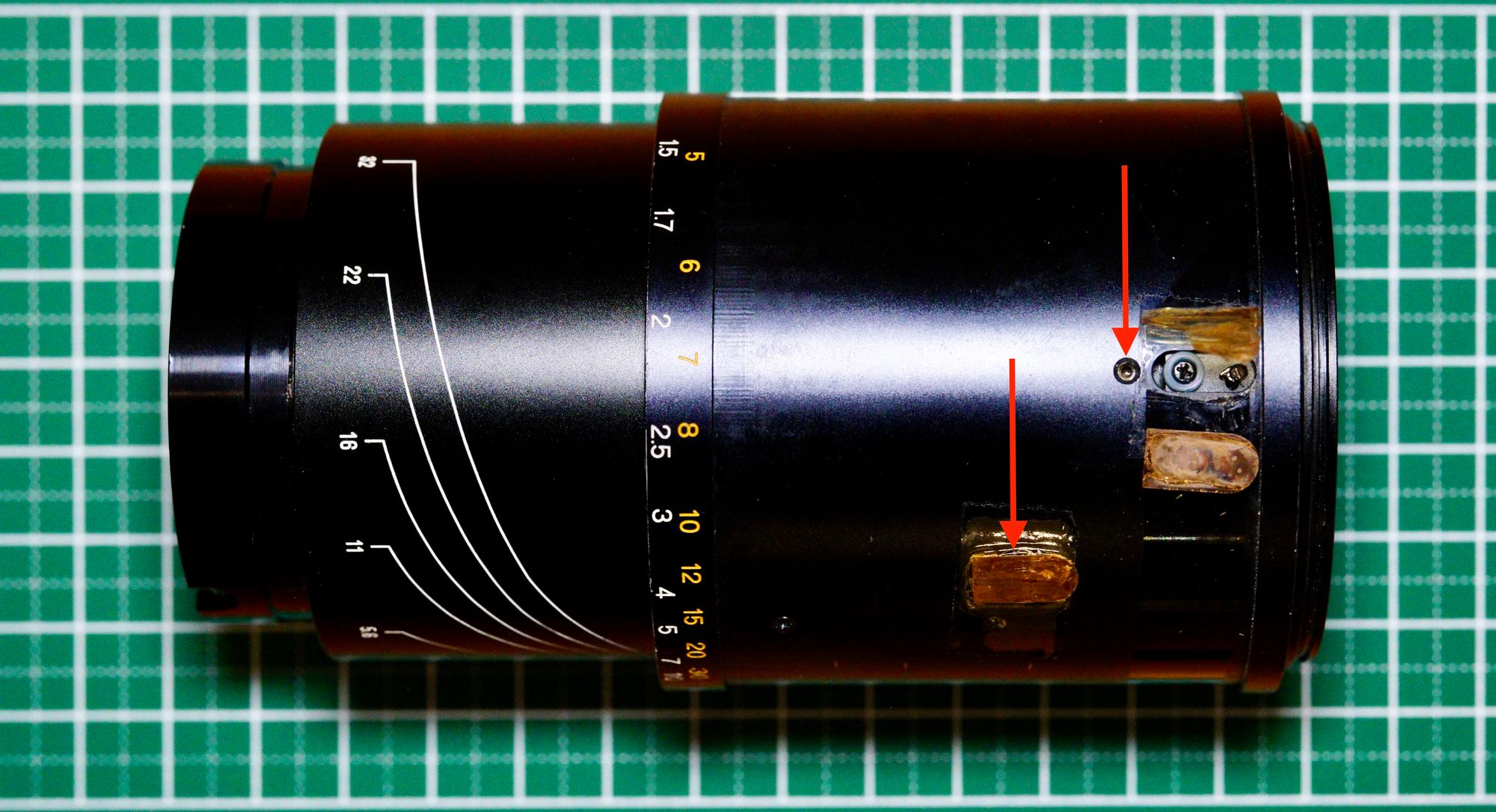

You'll want to remove the two copper plates close to the front of the lens.

Underneath there's 2 sliders, remove both.

After that you should be able to unscrew the front group

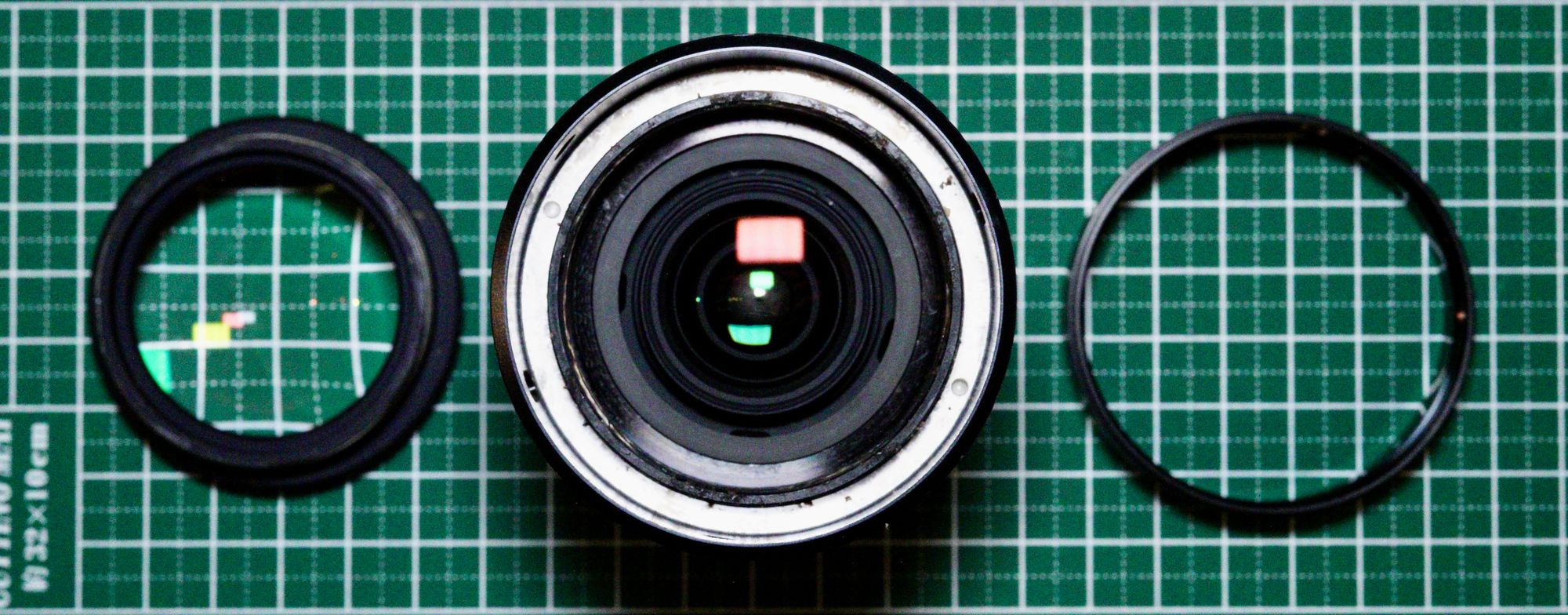

I removed the 3 little screws used to adjust the focus, I don't recommend doing so, but that's why there's two separate rings taken out in the photo below

Now you can clean the back of the front group!

The next group can be taken out with a lens compass.

Past this I'm not sure how to proceed further.

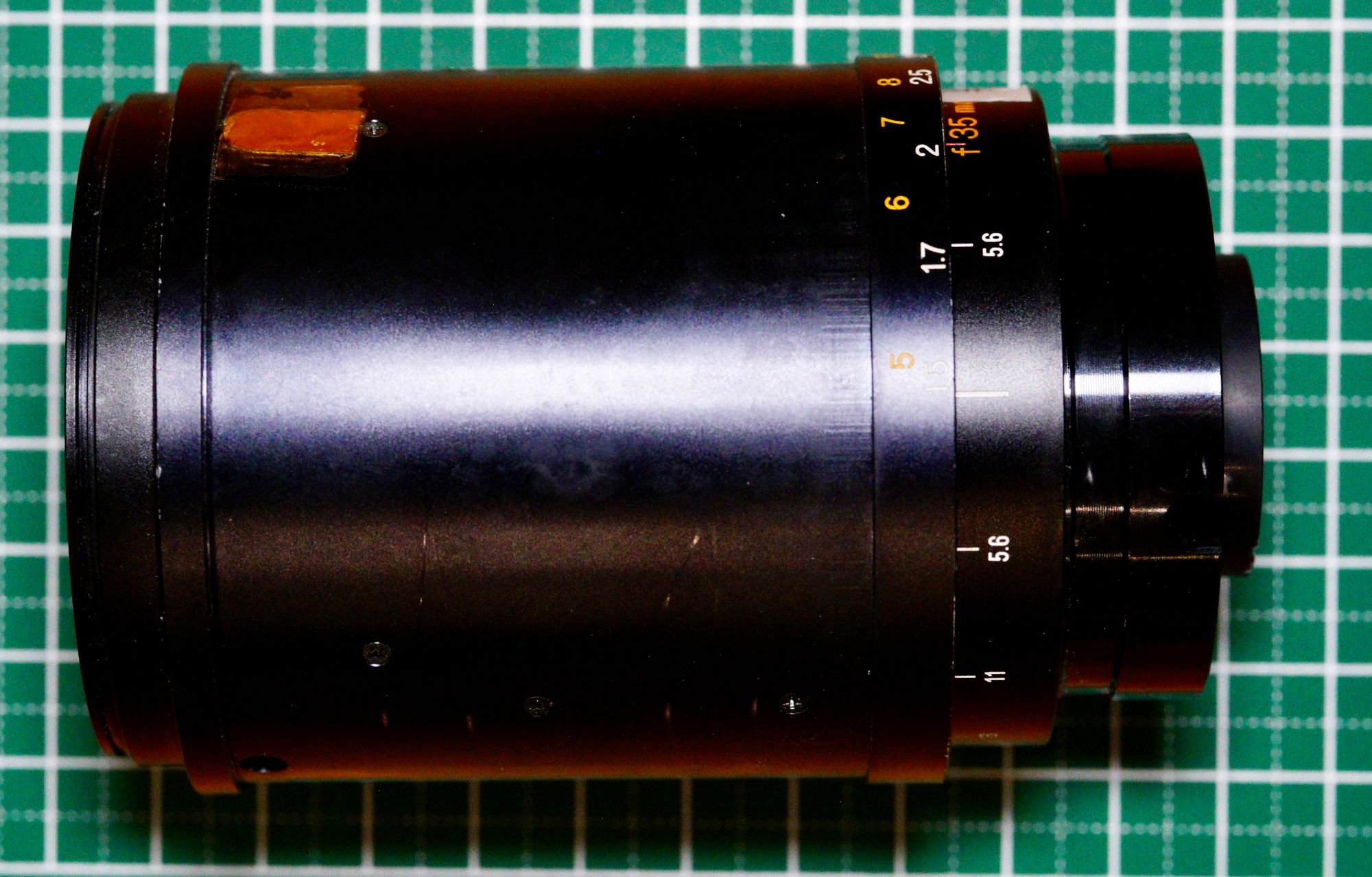

You can remove the 4 screws near the front, and remove the copper plate

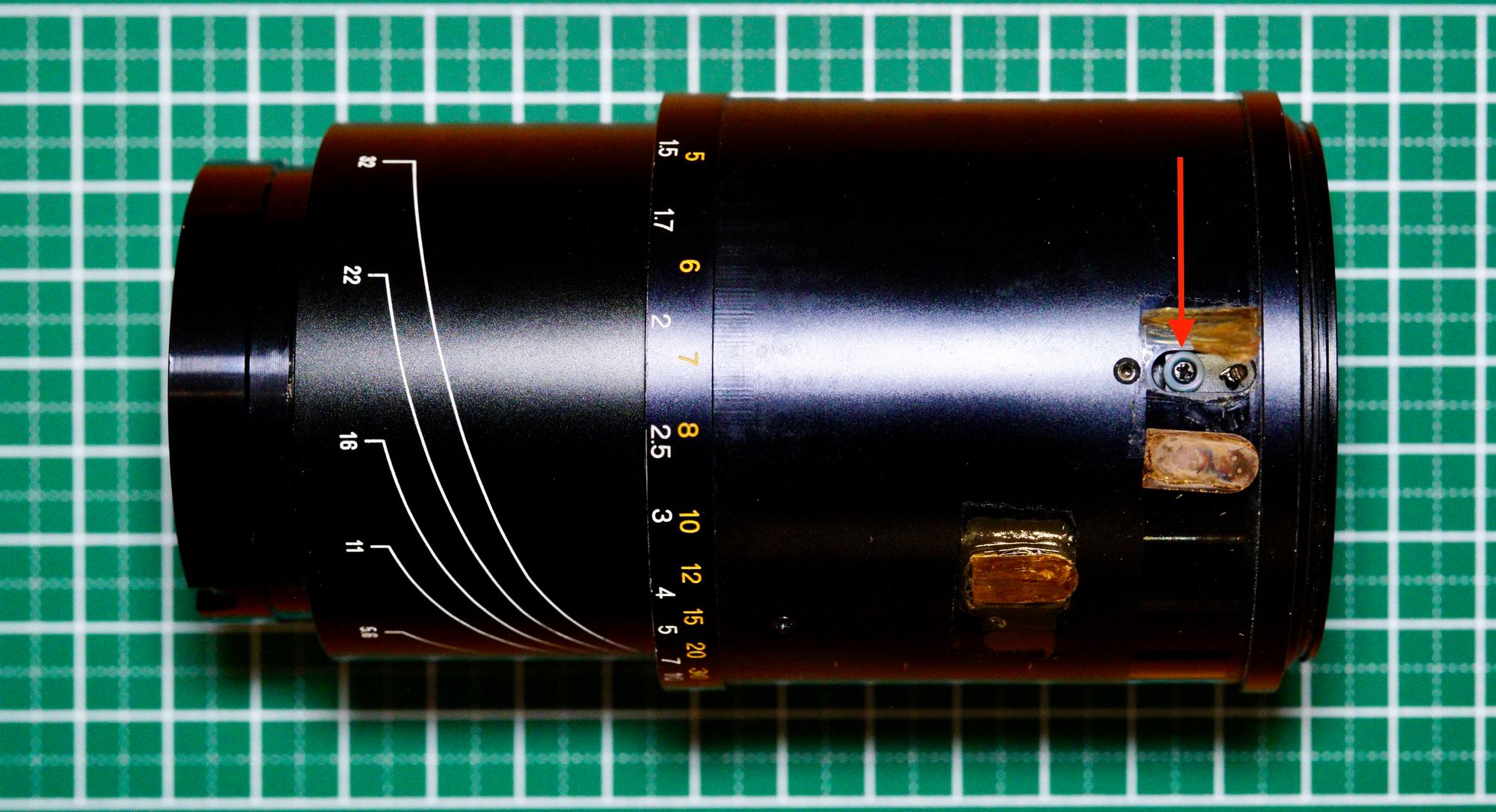

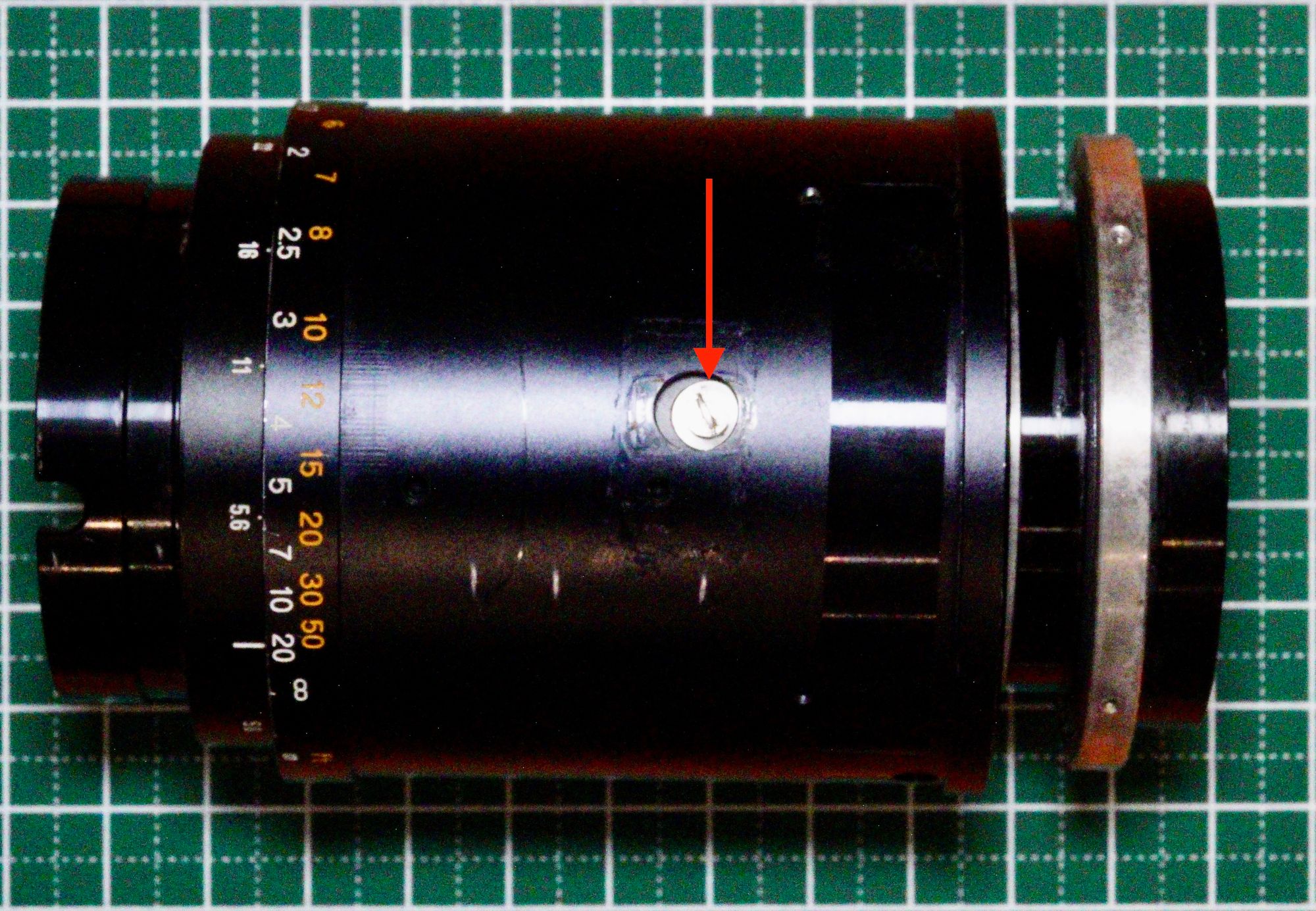

Twist the focusing ring around till this screw shows itself, remove the screw.

Remove the focusing ring
